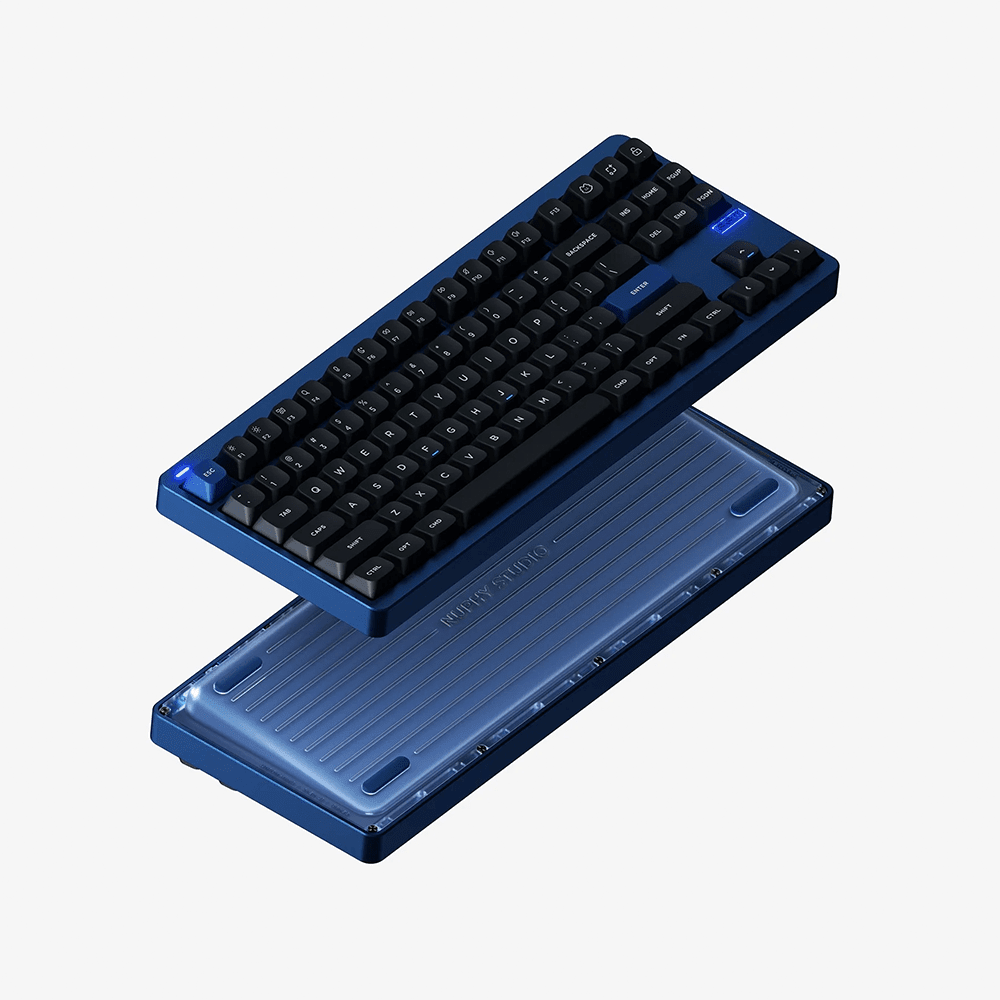

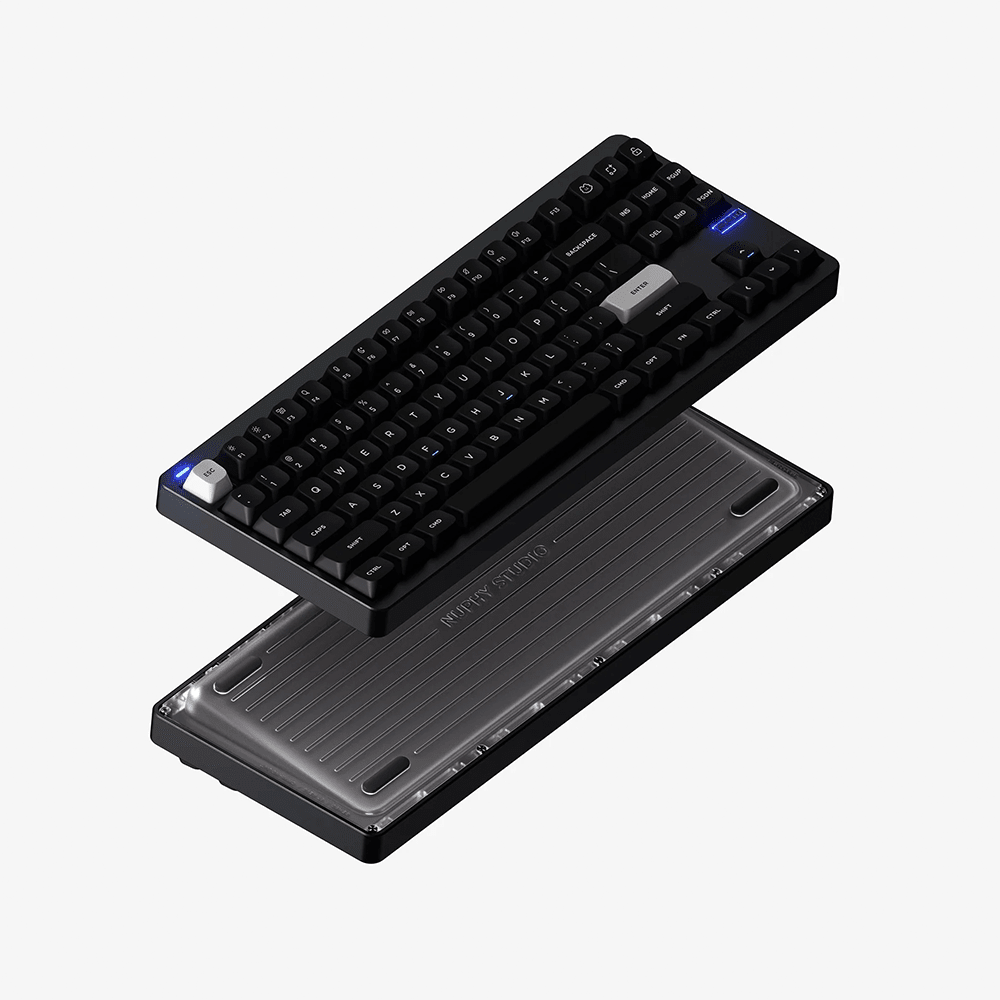

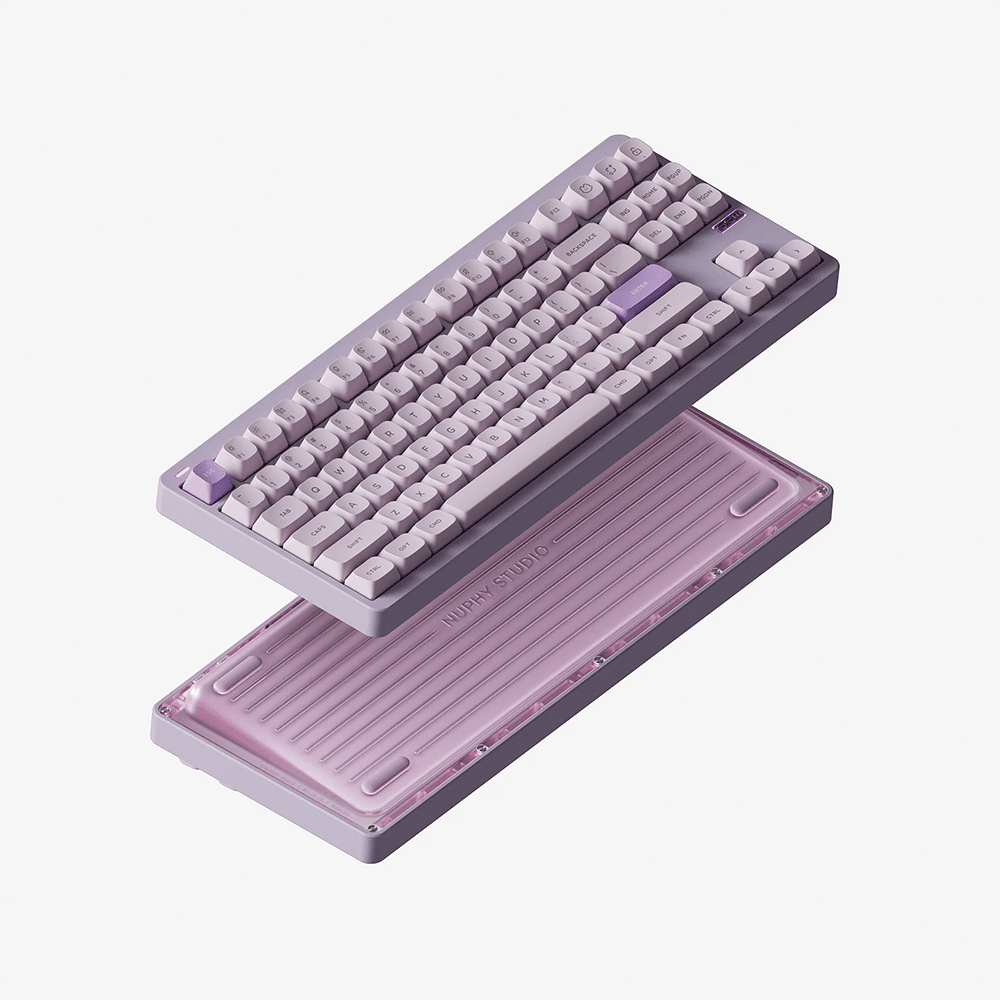

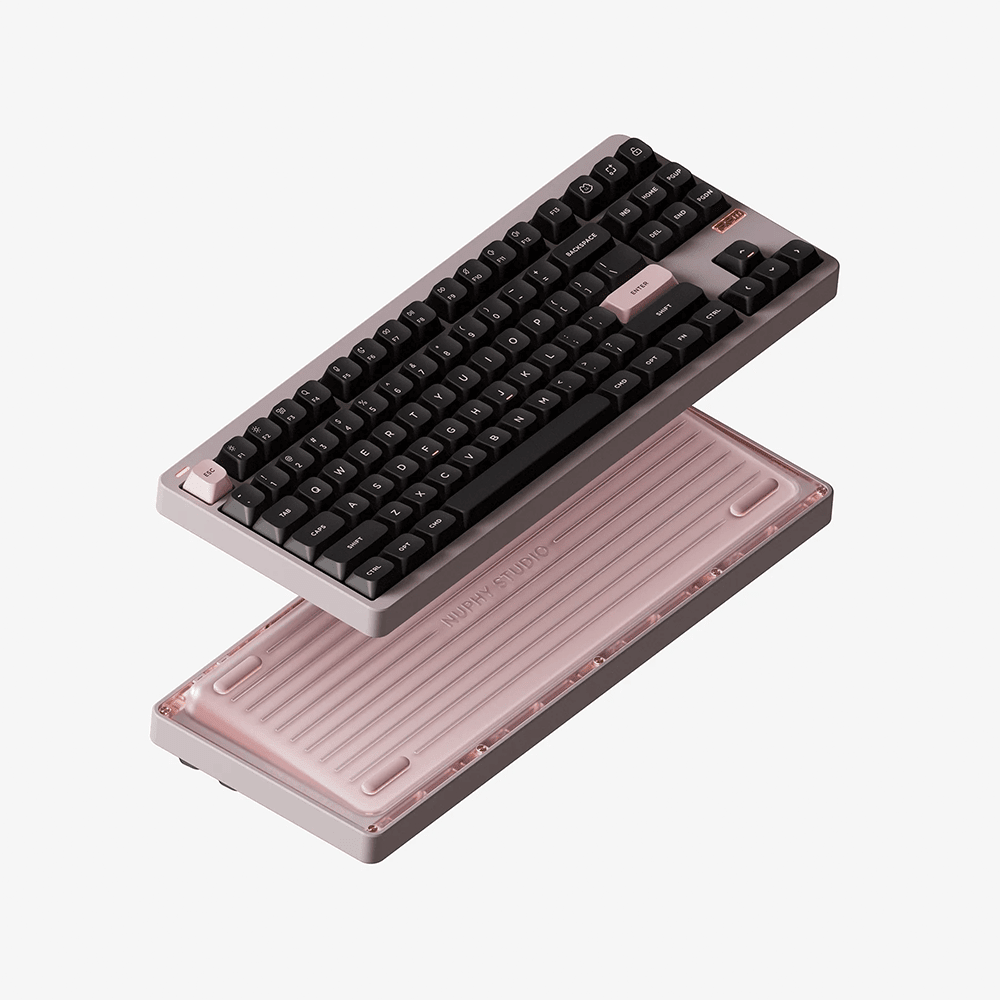

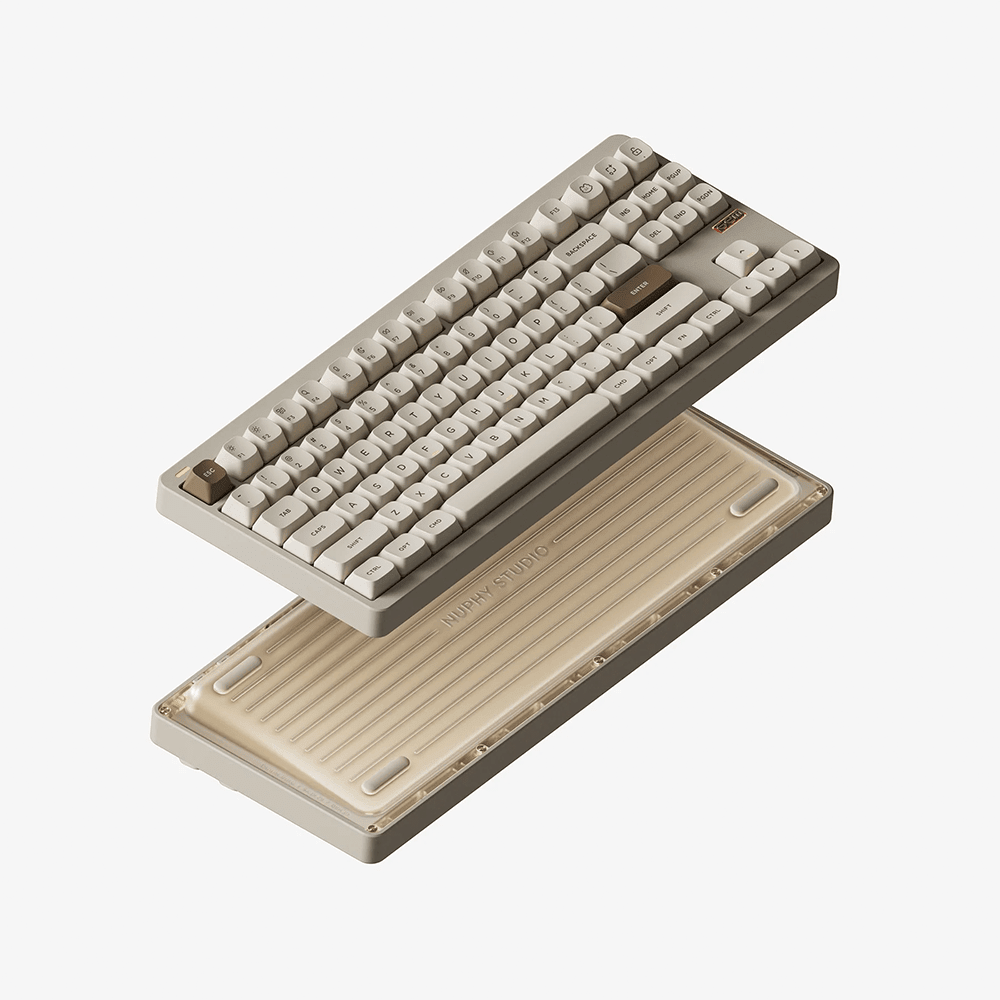

The NuPhy Gem80 Barebone is a high-quality custom keyboard kit in 80%/TKL format (ANSI layout) for enthusiasts who want to build their own individual setup. It forgoes pre-installed switches and keycaps, but offers a robust feature set and extensive customization options. The aluminum (top) and PC (bottom) chassis, combined with a gasket and top-mount design, provides a dampened, premium typing feel – ideal for builds focused on stability, sound, and precision.

Technical specifications:

• Layout: ANSI, approx. 80% (TKL) with around 88 keys

• Mounting Type: Gasket Mount with Top Mount Option

• Hot-swap socket: Yes (3-pin & 5-pin MX style)

• Housing materials:

  • Top Case: Aluminum

  • Bottom Case: Polycarbonate (PC)

• Panel: Standard FR4 (other options available separately)

• Lighting: South-facing RGB LEDs with diverse effects

• Connection (for Tri-Mode variant): USB-C wired + 2.4 GHz wireless + Bluetooth

• Dimensions: approx. 358.1 × 141.3 mm (L×W), height at front approx. 21.5 mm, at back approx. 36.7 mm

• Weight: approx. 1120 g

• Angle of inclination: approximately 6°

• Compatibility: QMK/VIA Firmware – full macro and layout customization possible

• Note: Keycaps and switches are not included in the barebone kit.
